YAMAHA YZF-R1 LE (2010) Features and Specifications
Motorcycle Wallpapers, choose by BRANDS>

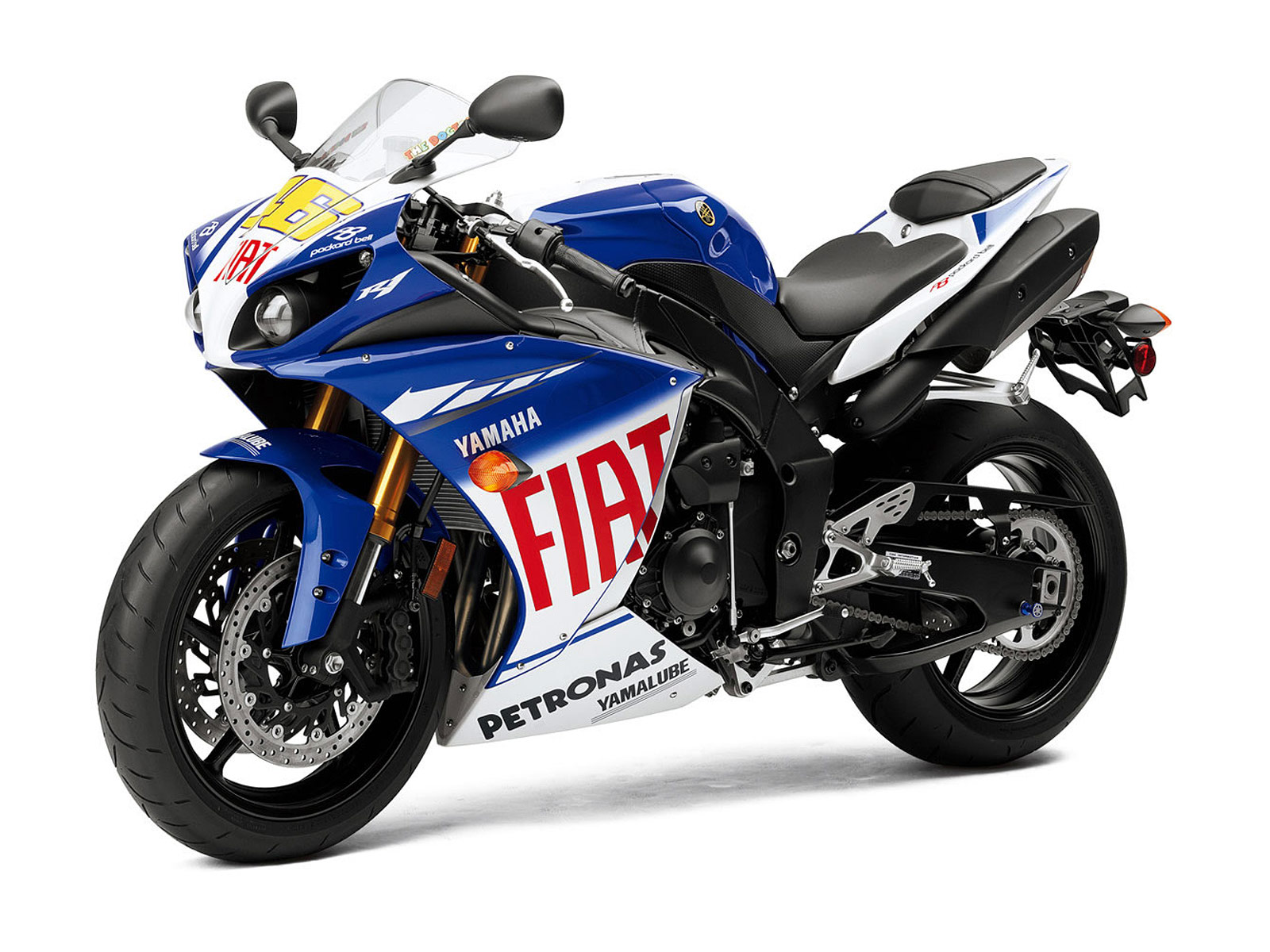

YAMAHA YZF-R1 LE (2010)
Pictures >
MotoGP Technology with looks to match.
The new 2010 Yamaha YZF-R1LE not only gives you much of Valentino Rossi's championship technology, but also his championship look and style. The R1 is the first ever production motorcycle with a crossplane crankshaft. The Result? Outrageous torque and raw, high-rpm power providing incredibly smooth power delivery out of the corners. While the bold Fiat Yamaha team graphics provide incredibly smooth style.
Highlights:
New for 2010:
= The YZF-R1 LE is a limited edition Valentino Rossi / Fiat Yamaha replica complete with the number "46" and "The Doctor" logos, including a replica of Valentino Rossi's signature on the fuel tank.
Features and Benefits (USA):
Key Features:
= The YZF-R1 garnered the prestigious award as the 2009 Motorcycle of the Year from Motorcyclist Magazine. The YZF-R1 was chosen for its MotoGP®-inspired engine and chassis technology, and for its luxurious fit and finish.
= Back for 2010, the YZF-R1 is the only production motorcycle with a crossplane crankshaft. Crossplane technology, first pioneered in MotoGP® racing with the M1, puts each piston 90° from the next, with an uneven firing interval of 270° - 180°- 90°- 180°. This uneven order does an amazing thing… it actually lets power build more smoothly. That means smooth roll-on delivery out of the corners, with outstanding tractability, followed by very strong high rpm power. It's a feeling that's simply unmatched, like having two engines in one: the low-rpm torquey feel of a twin with the raw, high rpm power of an inline four. This breakthrough technology on the YZF-R1 represents a paradigm shift in both technology and performance.
= This R1 keeps all the technological superiorities developed for its predecessor: YCC-T™ (Yamaha Chip Controlled Throttle) is MotoGP® inspired fly-by-wire technology used to deliver instant throttle response. YCC-I® is Yamaha Chip Controlled Intake which is a variable intake system that broadens the spread of power. The fuel injection system provides optimum air/fuel mixtures for maximum power and smooth throttle response.
= The R1 features Yamaha D-MODE (or drive mode) with rider-selectable throttle control maps to program YCC-T performance characteristics for riding conditions. The standard map is designed for optimum overall performance. The "A" mode lets the rider enjoy sportier engine response in the low- to mid-speed range, and the "B" mode offers response that is somewhat less sharp for riding situations that require especially sensitive throttle operation. Switching maps is as easy as pushing a button on the handlebar switch.
= In keeping with this machine's exceptional cornering ability and crisp handling, the aluminum frame has been designed to offer exceptional rigidity balance. The rear frame is lightweight Controlled-Fill die-cast magnesium, contributing the optimum mass centralization. Suspension includes SOQI front forks which use one of the tricks developed for our winning MotoGP® bikes: independent damping. The left fork handles compression damping and the right side handles the rebound damping. And the rear shock adopts bottom linkage for optimum suspension characteristics.
= The bodywork does more than add break-away-from-the-crowd styling with its more serious, less busy look. The side fairing is smooth for a sleek appearance. And, instead of the usual four-bulb headlight design, the R1 has only two projector-type bulbs mounted closer to the nose of the bike. This positions ram air ducts closer in for a more compact, smooth look. In addition, the rounded lenses are unique to the supersport industry.
Engine:
= Crossplane crankshaft technology proven in victory after victory on MotoGP® machines provides a high-tech uneven firing interval. Unlike typical inline-four engine design, where the two outer and two inner pistons move together in pairs with 180° intervals, the crossplane crankshaft has each connecting rod 90° with a unique firing order of 270° - 180° - 90° - 180°. This overcomes the inherent fluctuations in inertial torque during each engine revolution, and the accompanying peaky torque characteristics. Instead, combustion torque continues to build, giving the rider more linear throttle response with awesome power and traction out of the corners.
= To maximize rider comfort as well as power output, the engine adopts a coupling-type balancer that rotates in the opposite direction as the crankshaft.
= This engine features forged aluminum pistons to take maximum advantage of the power characteristics. Titanium intake valves are lightweight.
= A forced-air intake system is adopted to increase intake efficiency by using the natural airflow during riding to pressurize the air in the air box. This contributes to outstanding power delivery characteristics in the high-speed range, while the design also helps to minimize intake noise.
= Slipper-type back torque-limiting clutch greatly facilitates braking/downshifting from high speed.
= The exhaust system is meticulously designed to enhance engine output while, thanks to its three-way catalyst technology, also reducing exhaust emissions. The silencer is a single expansion type, and the sound coming through from the unique crossplane crankshaft- equipped engine is unlike any other inline-four cylinder production supersport.
= This fuel-injected engine takes full advantage of YCC-T (Yamaha Chip Controlled Throttle), the MotoGP®-inspired fly-by-wire technology used to deliver instant throttle response. There's also YCC-I, Yamaha Chip Controlled Intake, the variable intake system that broadens the spread of power. Fuel injectors have 12 holes for optimum fuel atomization that translates to the most power from every fuel charge.
= Have it your way, thanks to Yamaha D-MODE (or "Drive Mode") variable throttle control. There are three modes that control how YCC-T responds to throttle input from the rider. The selectable "A" mode puts more emphasis on engine response in low to midrange rpm. "B" mode, on the other hand, provides less sharp response to input for riding situations that require especially sensitive throttle operation. The standard map is designed for optimum overall performance. Selecting the map you want is as easy as pressing a button on the handlebars.
Chassis/Suspension:
= The frame has a combination of uncompromising rigidity where needed along with carefully achieved flex for the precise rigidity balance this bike needs to give the rider the full benefit of its handling and engine characteristics. It is a sophisticated combination of Controlled-Fill die-cast, stamping, and gravity casting… the exact technology needed for each portion of this advanced frame.
= SOQI front forks take a page from the championship-winning design of our MotoGP® weapon, the M1. Since both forks always move together, compression damping duties can be confined to the left fork, while rebound damping is precisely handled by the right fork, reducing oil cavitation.
= The SOQI rear shock features both high and low speed compression damping plus an easy-to-use screw hydraulic adjustment for preload. This unit also adopts a pillow-ball-type joint for exceptional shock absorption, road hold feeling, and damper response. To achieve maximum performance, a bottom linkage is used to work with the rest of the chassis refinements for brilliant, crisp handling characteristics.
= Factory racers get machines tailored to their preferences. Welcome to the club. R1 has adjustable footrests, with a 15mm height and 3mm front-to-rear adjustment.
= The press-formed fuel tank has a shape developed using 3-D simulation analysis technology. The elongated shape of the tank allows it to fit neatly within the frame in a way that promotes concentration of mass.
Additional Features:
= The instrumentation includes everything a rider wants to know, including gear position.
USA Specifications
MSRP* $14,500 (Fiat Yamaha Team Graphics) Available from January 2010
Engine
Type 998cc, liquid-cooled 4-cylinder DOHC 16 valves (titanium intake valves)
Bore x Stroke 78.0mm X 52.2mm
Compression Ratio 12.7:1
Fuel Delivery Fuel Injection with YCC-T and YCC-I
Ignition TCI: Transistor Controlled Ignition
Transmission 6-speed w/multiplate slipper clutch
Final Drive #530 O-ring chain
Chassis
Suspension/Front 43mm inverted fork; fully adjustable, 4.7-in travel
Suspension/Rear Single shock w/piggyback reservoir; 4-way adjustable, 4.7-in travel
Brakes/Front Dual 310mm disc; radial-mount forged 6-piston calipers
Brakes/Rear 220mm disc; single-piston caliper
Tires/Front 120/70-ZR17
Tires/Rear 190/55ZR17
Dimensions
Length 81.5 in
Width 28.1 in
Height 44.5 in
Seat Height 32.8 in
Wheelbase 55.7 in
Rake (Caster Angle) 24.0°
Trail 4.0 in
Fuel Capacity 4.8 gal
Dry Weight 454 lb
Other
Primary Reduction Ratio 65/43 (1.512)
Secondary Reduction Ratio 47/17 (2.765)
Gear Ratio - 1st Gear 38/15 (2.533)
Gear Ratio - 2nd Gear 33/16 (2.063)
Gear Ratio - 3rd Gear 37/21 (1.762)
Gear Ratio - 4th Gear 35/23 (1.522)
Gear Ratio - 5th Gear 30/22 (1.364)
Warranty 1 Year (Limited Factory Warranty)
Gear Ratio - 6th Gear 33/26 (1.269)
Motorcycle Insurance Informations BIKE INSURANCE THAT WON’T BREAK YOUR BUDGET http://www.insureonthespot.com/
|
Tuesday, July 13, 2010
FJR1300A (2010) YAMAHA insurance info | pictures |
YAMAHA Models >
YAMAHA FJR1300A (2010)
Features and specifications >
Motorcycle Insurance Informations BIKE INSURANCE THAT WON’T BREAK YOUR BUDGET http://www.insureonthespot.com/
|
YAMAHA FJR1300A specifications | features | insurance info |
Motorcycle Wallpapers, choose by BRANDS>
YAMAHA FJR1300A (2010)
Pictures >
With plenty of ponies on tap, a lightweight aluminum frame and incredible stopping power, the 2010 Yamaha FJR1300 puts the sport into sport touring. But we have not forgotten about rider comfort either. Excellent ergonomics, a stylish weather beating fairing and the peace of mind of ABS will have the miles disappearing in the mirrors... rapidly.
Ultimate supersport tourer...the Yamaha 2010 FJR1300A
Deep, smooth power that sends you down the road like a flat rock skimming a smooth lake, a perfectly tuned chassis that snaps solidly into corners and hangs onto the line you choose, powerful brakes with advanced ABS that bring you to a confident stop in all kinds of weather.
For those riders who still prefer a serious dose of power, comfort and handling in their sport touring machine, the FJR1300 is the perfect choice.
Featuring an electrically adjustable windshield, air management to keep things cool and sporty handling, you'll soon discover why the FJR1300 is one of the world's premier sport touring machines.
Highlights:
Fuel Consumption * 17kpl/47mpg(Imp
ABS Brakes
Advanced air management
Features and Benefits (USA):
Key Features:
= A light-and-rigid aluminum frame, sportbike running gear and standard hard sidebags go beautifully together.
= Pushbutton adjustable windscreen and a thick comfy seat for two are perfect for comfortable, long-distance riding.
= The world's first supersport touring bike boasts standard ABS and adjustable ergonomics-that widen the gap between it and common sport tourers to a gaping chasm.
= Advanced air management system and adjustable bodywork keep the FJR rider looking and feeling cool.
= Instrument panel contains an electronic analog speedometer and tachometer; LCD digital odometer, dual tripmeters, gear position indicator, fuel, coolant and air temperature gauges, and clock; lights for neutral, high beam, turn signals, low oil and engine warnings-as well as real-time mileage, average mileage and air temperature.
Engine:
= Compact, lightweight 1298cc, DOHC, 16-valve, liquid-cooled inline four-cylinder engine delivers power and torque for an unequaled spread of muscle over a wide rpm range.
= Engine is a fully stressed chassis member, allowing for a lightweight frame design.
= Curved radiator with custom ducting and twin-ring cooling fans help keep engine and cockpit cool.
= Slant-block engine design uses stacked, tri-axis gearbox shafts that help minimize powerplant size while optimizing chassis geometry for balanced weight distribution and great handling.
= Lightweight forged pistons with carburized connecting rods provide superb strength and reduced reciprocating mass for outstanding high-rpm durability and performance.
= Patented electroplated ceramic composite cylinder bores ensure greater heat dissipation and thus reduced frictional power loss.
= Advanced fuel injection system is ideal for long-distance supersport-touring, delivering crisp, seamless throttle response in a variety of altitude/weather conditions.
= Gearshift shaft features a needle-roller bearing to reduce friction for silky-smooth shifting.
= Shaft final drive system is super-durable and virtually maintenance-free.
= Low-vibration crankshaft with two gear-driven secondary counterbalancers help deliver a glass-smooth ride with reduced rider/passenger fatigue.
= Constant-mesh 5-speed transmission utilizes wide ratios to deliver relaxed long-distance touring performance combined with seamless power and acceleration.
= Four-into-one-into-two stainless-steel exhaust optimizes engine performance across the powerband.
= Wet-sump oil system uses an easy-access cartridge-type oil filter mounted on the engine's left side.
Chassis/Suspension:
= Sharp-looking bodywork and air-management system keep the bike and rider cooler; a central vent beneath the instrument panel cools the rider and reduces negative pressure for less buffeting, and fairing side panels with 1.2-inch adjustability let the rider direct airflow.
= Adjustable ergonomics: the seat can be adjusted up or down by nearly an inch, and handlebar pullback angle is three-position adjustable over a half-inch range.
= Long swingarm provides even better ride and handling characteristics, and rear spring preload adjustment is a snap.
= Standard equipment Unified Braking System w/ABS: The front brake lever activates six of the eight front braking pistons; the rear brake pedal activates two rear pistons and the other two front pistons-provides balanced anti-lock braking in all conditions.
= Ergonomically shaped, large-capacity, 6.6-gallon fuel tank offers excellent comfort and range and is constructed of steel allowing for the use of magnetic tankbags.
= Rear frame with integrated grab handle makes lifting the bike onto the centerstand a snap.
= An additional catalyst and a heated oxygen sensor are located in the exhaust for increased fuel injection control range and low emissions.
Additional Features:
= Subframe-fitted quick-release luggage mounts provide easy use of the standard accessory hard sidecases†, which are conveniently matched to the ignition key.
= Slim profile even with bags in place for excellent in-town maneuverability.
= Long dual seat features two-part construction using different foam densities for the front and rear sections, ensuring plush comfort for both rider and passenger.
= Big windscreen adjusts over a wide range for improved wind protection with little negative pressure.
= Sleek, cat-eye dual 12V 60/55-watt multi-reflector headlights throws an extremely broad beam for superb visibility and feature easy-access adjustment knobs; mirrors are easy to adjust and retract horizontally.
= Powerful dual-bulb taillight features integrated turn signals for a slick, one-piece look that's aerodynamic and conspicuous.
= Integrated front turn signals with clear lenses add to the FJR1300A's cutting-edge aerodynamic bodywork.
= Glove box contains a 12V outlet for phones, GPS units, electric vests, etc.
= Standard toolkit located in convenient storage compartment under passenger seat.
USA Specifications
MSRP* $15,190 (Liquid Silver) Available from February 2010
Engine
Type 1298cc liquid-cooled inline 4-cylinder; DOHC, 16 valves
Bore x Stroke 79 x 66.2mm
Compression Ratio 10.8:1
Fuel Delivery Fuel Injection
Ignition TCI: Transistor Controlled Ignition
Transmission 5-speed; multiplate wet clutch
Final Drive Shaft
Chassis
Suspension/Front 48mm fork; fully adjustable, 5.4-in travel
Suspension/Rear Single shock; adjustable preload and rebound damping, 4.8-in travel
Brakes/Front Dual 320mm disc, UBS ABS
Brakes/Rear 282mm disc, UBS ABS
Tires/Front 120/70-ZR17 radial
Tires/Rear 180/55-ZR17 radial
Dimensions
Length 88.2 in
Width 29.3 in
Height 52.4 in
Seat Height 31.69 or 32.48 in
Wheelbase 60.8 in
Rake (Caster Angle) 26°
Trail 4.3 in
Fuel Capacity 6.6 gal
Fuel Economy** 39 mpg
Wet Weight 641 lb
Other
Warranty 1 Year (Limited Factory Warranty)
Motorcycle Insurance Informations BIKE INSURANCE THAT WON’T BREAK YOUR BUDGET http://www.insureonthespot.com/
|
Tuesday, July 6, 2010
INDIAN Chief Roadmaster (2010) insurance info | wallpapers | hi res pictures |
Motorcycle Desktop Wallpapers,
high resolution pictures, specifications and insurance informations.
INDIAN
Chief Roadmaster (2010)
Click Thumbnail to download (size 1600 x 1200 pixels)
Features and Specifications >
Press Releases
News Brief: New Indian Motorcycle Models announced at Dealer Meeting
New Chief Roadmaster and Chief Bomber will be on display at the Sturgis Rally
Kings Mountain, NC- Indian Motorcycle revealed two additional models- The Dark Horse and Bomber-to an excited dealer network. Fifteen Indian Motorcycle dealerships are open worldwide and representatives from each location were on hand for the first official dealership meeting June 22-24th.
Inspired by WWII aircraft, the Bomber is a limited edition Chief model and will only be available for one year. The Bomber is available in Military Green and Silver Smoke finishes. The pin-up girl tank artwork is inspired by the Bomber nose art of that era. The leather used on the seat and saddlebags are reminiscent of the feel and color of an old bomber jacket. The price of the Bomber is $30,999.
The Chief Dark Horse is a dark, sinister, mechanical looking motorcycle with a smoke "matte" finish and is available in Thunder Black, Indian Red and Deep Water Blue. The colored headdress on the tank is a new twist on the colored versions of the past. The dark components on the bike including the blacked out headlight, tappet blocks, suspension, engine components, exhaust system, and hand controls make the remaining chrome components stand out. The Dark Horse is priced at $27,999.
The new Classic is the entry level Chief and is the only Chief model available with short fenders. It features the Indian script tank logo and is available in standard Indian Red or Thunder Black. Optional colors are also available in Dark Water Blue or Starlight Silver. The price starts at $25,999.
All Chiefs feature a 105 cubic inch PowerPlus V-Twin powertrain with electronic closed loop sequential port fuel injection. Engine cylinders are Nikasil plated and the stainless stell exhaust system is an integrated 3-way catalytic converter with heated oxygen sensors.
A six-speed Baker transmission delivers power through the belt drive. Stopping is achieved via Brembo 4-piston calipers, with 11.5" dual rotors up front. Standard 5.5-gallon tank helps extend cruising range. Seats are all-leather and built to exacting specifications.
"We're very excited about the new Indian models which bring a more distinct range to the Chief line," said Chris Bernauer, General Manager. "Releasing new, superior product is a legacy that we are happy to continue."
Assembly takes place in Kings Mountain, NC with an incessant emphasis on quality and craftsmanship. For more information on Indian Motorcycles, dealerships, apparel, and accessories .................. Read more>
Motorcycle Insurance Informations http://www.progressive.com/
|
INDIAN Chief Roadmaster (2010) Features | Specifications
INDIAN Chief Roadmaster (2010)
Features and Specifications
Pictures >
A six-speed Baker transmission delivers power through the belt drive. Stopping is achieved via Brembo 4-piston calipers, with 11.5" dual rotors up front. Standard 5.5-gallon tank helps extend cruising range. Seats are all-leather and built to exacting specifications.
Model Features
Styling
" Chromed tear drop Halogen Headlamp
" Additional driving lamps
" Die cast console - color matched
" Black and polished engine with chrome covers
" Chromed spoke wheels
" Available billet wheels
" Two into one stainless steel exhaust system with three way catalytic converter and chromed shields
" Available long skirt fenders and dual tone paint
" Polished brake calipers
Powertrain
" Air cooled, pushrod, rigid mounted, Power Plus 105ci engine
" Closed loop, sequential, port injection with heated oxygen sensors
" Six speed transmission
Chassis
" Seat: Luxury touring seat available in black, tan and red leather with or without fringe
" 5.5 gallon fuel tank
" Brembo brake system with dual floating rotors and 4 piston calipers in the front and single floating rotor and two piston caliper in the rear. (not pictured)
" Two accessory 12 V outlets
" Quick release windshield
" Roadmaster saddle bags available in black, tan and red leather with or without fringe
Electrical
" Tank mounted analog speedometer and multi function digital display
" Charging system 42 Amps
" Lamps: Tear drop head lamp, glass front fender light, auxilliary spot lights
" There are no electrical relays in the system
Note: All specifications subject to change.
Specifications
MSRP: $33,999 USD
dimensions
Length 100.5"
Width 40.5"
Height 50.5"
Seat Height Laden 26.69"
Seat Height Unladen 27.89"
Wheelbase 68.4"
Dry Weight
(will vary for each model) 747 lbs
Running Order Weight 773 lbs
Rake Steering Head/Trail 34°/5.92"
GVW - Gross Vehicle Weight 1260 lbs
engine
Engine Type Power Plus 105, Air-Cooled
Displacement 105 Cubic Inches
Bore x Stroke 3.966 x 4.25
Compression Ratio 9 to 1
Engine Torque 100 ft*lbs (TBD)
Fuel System Closed Loop Sequential Port Fuel Injection
drivetrain
Primary Drive Chain
Gearbox Six Speed
Gear Ratio (overall)
1st 10.441:1
2nd 7.090:1
3rd 5.172:1
4th 3.984:1
5th 3.193:1
6th 2.771:1
Final Drive Belt
chassis
Frame High tensile steel, monoshock
Suspension/Front Diameter 41 mm/Travel 108 mm
Suspension/Rear Single shock/travel 73 mm
Brakes/Front Dual Caliper with Floating Rotors 11.5" Diameter
Brakes/Rear Single Caliper Floating Rotor 11.5" Diameter
Tires/Front 130/90-16 Black or White Wall
Tires/Rear 150/90-16 Black or White Wall
Wheels Wire spoked
Exhaust System Two Into One Stainless Steel With Chromed Shields
Electrical Instruments Tank mounted analog speedometer and muti function digital display
Charging System 42 Amps
Lamps Tear drop head lamp, glass front fender light, auxillary spot lights.
warranty 2 Years
pricing $33,999*
standard colors
Thunder Black with Silver Script
Thunder Black with Silver Head Dress
available colors
$199 Indian Red with Gold Script
$199 Indian Red with Gold Head Dress
$899 Thunder Black & Winter White w/ Silver Head Dress
$899 Midnight Blue Metallic & Winter White w/ Silver Head Dress
$899 Thunder Black & Indian Red w/ Gold Head Dress
$899 Smoke Silver Metallic & Winter White w/ Vintage Head Dress
standard equipment
Short Fenders
Two Up Seat, Black Leather
Roadmaster Leather Saddlebags, Black
Passenger Backrest
Windshield
available equipment
$499 Long Fenders
$99 White Wall Tires
$999 Billet Wheels
$99 Red Leather Seat & Saddlebags
$99 Tan Leather Seat & Saddlebags
$99 Leather Fringe
* Does not include delivery, setup and local taxes
Note: All specifications subject to change
Motorcycle Insurance Informations http://www.progressive.com/
|
INDIAN Chief Vintage (2010) hi res pictures | wallpapers | insurance info |
Motorcycle Desktop Wallpapers,
specifications and insurance informations.
INDIAN
Chief Vintage (2010)
Click Thumbnail to download (size 1600 x 1200 pixels)
Features and Specifications >
Press Releases
News Brief: New Indian Motorcycle Models announced at Dealer Meeting
New Chief Dark Horse and Chief Bomber will be on display at the Sturgis Rally
Kings Mountain, NC- Indian Motorcycle revealed two additional models- The Dark Horse and Bomber-to an excited dealer network. Fifteen Indian Motorcycle dealerships are open worldwide and representatives from each location were on hand for the first official dealership meeting June 22-24th.
Inspired by WWII aircraft, the Bomber is a limited edition Chief model and will only be available for one year. The Bomber is available in Military Green and Silver Smoke finishes. The pin-up girl tank artwork is inspired by the Bomber nose art of that era. The leather used on the seat and saddlebags are reminiscent of the feel and color of an old bomber jacket. The price of the Bomber is $30,999.
The Chief Dark Horse is a dark, sinister, mechanical looking motorcycle with a smoke "matte" finish and is available in Thunder Black, Indian Red and Deep Water Blue. The colored headdress on the tank is a new twist on the colored versions of the past. The dark components on the bike including the blacked out headlight, tappet blocks, suspension, engine components, exhaust system, and hand controls make the remaining chrome components stand out. The Dark Horse is priced at $27,999.
The new Classic is the entry level Chief and is the only Chief model available with short fenders. It features the Indian script tank logo and is available in standard Indian Red or Thunder Black. Optional colors are also available in Dark Water Blue or Starlight Silver. The price starts at $25,999.
All Chiefs feature a 105 cubic inch PowerPlus V-Twin powertrain with electronic closed loop sequential port fuel injection. Engine cylinders are Nikasil plated and the stainless stell exhaust system is an integrated 3-way catalytic converter with heated oxygen sensors.
A six-speed Baker transmission delivers power through the belt drive. Stopping is achieved via Brembo 4-piston calipers, with 11.5" dual rotors up front. Standard 5.5-gallon tank helps extend cruising range. Seats are all-leather and built to exacting specifications.
"We're very excited about the new Indian models which bring a more distinct range to the Chief line," said Chris Bernauer, General Manager. "Releasing new, superior product is a legacy that we are happy to continue."
Assembly takes place in Kings Mountain, NC with an incessant emphasis on quality and craftsmanship. For more information on Indian Motorcycles, dealerships, apparel, and accessories............Read more >
Motorcycle Insurance Informations http://www.progressive.com/
|
INDIAN Chief Vintage (2010) Features | Specifications
INDIAN Chief Vintage (2010)
Features and Specifications
Pictures >
A six-speed Baker transmission delivers power through the belt drive. Stopping is achieved via Brembo 4-piston calipers, with 11.5" dual rotors up front. Standard 5.5-gallon tank helps extend cruising range. Seats are all-leather and built to exacting specifications.
Model Features
Styling
" Chromed tear drop Halogen Headlamp
" Auxilliary driving lamps
" Die cast console - color matched
" Black and polished engine with chrome covers
" Chromed spoke wheels
" Two into one stainless steel exhaust system with three way catalytic converter and chromed shields
" Available long skirt fenders and dual tone paint
" Polished brake calipers
" Metal tank badge
" Chrome fender tips
" Engine guards
Powertrain
" Air cooled, pushrod Power Plus 105ci engine
" Closed loop, sequential, port injection with heated oxygen sensors
" Six speed transmission
Chassis
" Seat: Solo seat with passenger pillion available in black, tan and red leather with fringe
" 5.5 gallon fuel tank
" Brembo brake system with dual floating rotors and 4 piston calipers in the front and single floating rotor and two piston caliper in the rear.
" Two accessory 12 V outlets
" Quick release windshield
" Vintage saddle bags in black, tan, or red leather with fringe
Electrical
" Tank mounted analog speedometer and multi function digital display
" Charging system 42 Amps
" Lamps: Tear drop head lamp, glass front fender light, auxilliary spot lights
" There are no electrical relays in the system
Note: All specifications subject to change
Specifications
MSRP: $35,499 USD
dimensions
Length 100.5"
Width 40.5"
Height 50.5"
Seat Height Laden 26.69"
Seat Height Unladen 27.89"
Wheelbase 68.4"
Dry Weight
(will vary for each model) 753 lbs
Running Order Weight 773 lbs
Rake Steering Head/Trail 34°/5.92"
GVW - Gross Vehicle Weight 1260 lbs
engine
Engine Type Power Plus 105, Air-Cooled
Displacement 105 Cubic Inches
Bore x Stroke 3.966 x 4.25
Compression Ratio 9 to 1
Engine Torque 100 ft*lbs (TBD)
Fuel System Closed Loop Sequential Port Fuel Injection
drivetrain
Primary Drive Chain
Gearbox Six Speed
Gear Ratio (overall)
1st 10.441:1
2nd 7.090:1
3rd 5.172:1
4th 3.984:1
5th 3.193:1
6th 2.771:1
Final Drive Belt
chassis
Frame High tensile steel, monoshock
Suspension/Front Diameter 41 mm/Travel 108 mm
Suspension/Rear Single shock/travel 73 mm
Brakes/Front Dual Caliper with Floating Rotors 11.5" Diameter
Brakes/Rear Single Caliper Floating Rotor 11.5" Diameter
Tires/Front 130/90-16 White Wall
Tires/Rear 150/90-16 White Wall
Wheels Wire spoked
Exhaust System Two Into One Stainless Steel With Chromed Shields
Electrical Instruments Tank mounted analog speedometer and muti function digital display
Charging System 42 Amps
Lamps Tear drop head lamp, glass front fender light, auxillary spot lights.
warranty 2 Years
pricing 35,499*
standard colors
Thunder Black
available colors
$199 Indian Red
$199 Ivory Cream
$899 Thunder Black & Indian Red
$899 Willow Green & Ivory Cream
$899 Indian Red & Ivory Cream
$899 Arizona Turquoise & Winter White
standard equipment
Long Fenders
Solo Seat w/ Passenger Pillion, Black Leather
Vintage Leather Saddlebags, Black
Tinted Windshield
Leather Fringe
Chrome Grab Rail
Chrome Fender Tips
Engine Guards
available equipment
Short Fenders
$999 Billet Wheels
$99 Red Leather Seat & Saddlebags
$99 Tan Leather Seat & Saddlebags
* Does not include delivery, setup and local taxes
Note: All specifications subject to change
Motorcycle Insurance Informations http://www.progressive.com/
|
